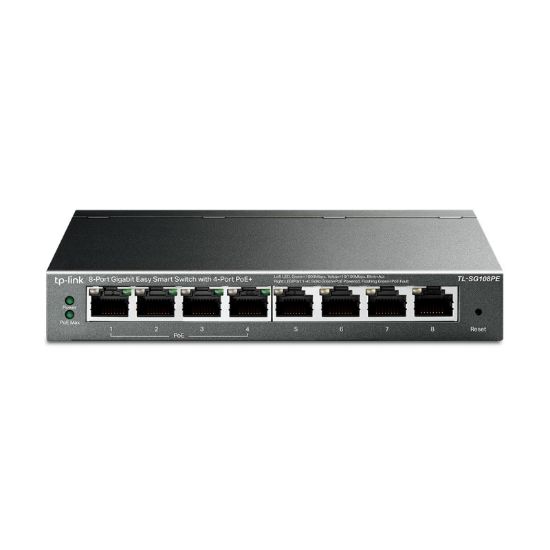

TP-Link TL-SG108PE

- Equipped with 4 × 802.3af PoE+ ports with up to 30W for each port, data and power can be transferred on one single cable
- Supports PoE power up to 64W for all PoE ports
- Provides network monitoring, traffic prioritization and VLAN features
- Simple network set-up on top of plug-and-play connectivity
- Web-based user interface and Easy Smart Configuration Utility simplify configuration

Specifications
HARDWARE FEATURES
- Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
- Interface:
* 8× 10/100/1000Mbps RJ45 Ports
* AUTO Negotiation/AUTO MDI/MDIX
- Network Media:
* 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
* EIA/TIA-568 100Ohm STP (maximum 100m)
* 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
* EIA/TIA-568 100Ohm STP (maximum 100m)
* 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
* EIA/TIA-568 100Ohm STP (maximum 100m)
- Fan Quantity: Fanless
- Power Supply: External Power Adapter(Output: 53.5 VDC/1.31 A)
- PoE Ports (RJ45):
* tandard: 802.3 af compliant
* PoE Ports: Port 1- Port 4
* PoE Power Budget: 64W
- Max Power Consumption:
* 5.41W (220V/50Hz with no PD connected)
* 74.27W (220V/50Hz with 64W PD connected)
- Max Heat Dissipation:
* 18.45 BTU/h (with no PD connected)
* 253.26 BTU/h (with 64W PD connected)

PERFORMANCE
- Switching Capacity: 16Gbps
- Packet Forwarding Rate: 11.9Mpps
- MAC Address Table: 4K
- Packet Buffer Memory: 1.5Mb
- Jumbo Frame: 15KB

SOFTWARE FEATURES
- Quality of Service:
* Support Port-Based/802.1p/DSCP priority
* Support 4 priority queues
* Rate Limit
* Storm Control
- L2 Features:
* IGMP Snooping V1/V2/V3
* Static Link Aggregation
* Port Mirroring
* Cable Diagnostics
* Loop Prevention
- VLAN:
* Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
* MTU/Port/Tag VLAN
- Management: Web-based GUI, Easy Smart Configuration Utility
- Transmission Method: Store-And-Forward

OTHERS
- Certification: FCC, CE, RoHS
- Package Contents: TL-SG108PE, Power Adapter, Installation Guide, Rubber Feet
- System Requirements: Microsoft Windows for running Utility
- Environment:
* Operating Temperature: 0C - 40C (32F - 104F)
* Storage Temperature: -40C - 70C (-40F - 158F)
* Operating Humidity: 10% - 90%RH non-condensing
* Storage Humidity: 5% - 95%RH non-condensing
