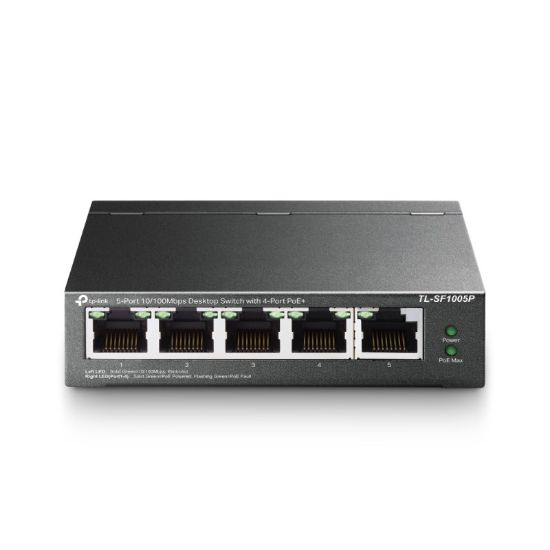

TP-Link TL-SF1005P

POWER OVER ETHERNET
- 4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function
- These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs)

INTELLIGENT POWER MANAGEMENT
- When total power consumption excels 58W, the intelligent power management will cut the lower priority port power off to ensure the high priority ports power supply and protect the device from power overload operation

ADVANCED FUNCTIONS FOR HIGHER PERFORMANCE
- Qos For Fluent Online Experience: Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free
- IGMP Snooping Traffic Optimization for IPTV: IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV

Features
- 5× 10/100Mbps RJ45 ports
- With four PoE ports, transfers data and power on one single cable
- Working with IEEE 802.3af compliant PDs, expands home and office network
- Supports PoE Power up to 15.4W for each PoE port
- Supports PoE Power up to 58W for all PoE ports
- Requires no configuration and installation

Specifications
HARDWARE FEATURES
- Interface:
* 5× 10/100Mbps RJ45 Ports
* AUTO Negotiation/AUTO MDI/MDIX
- Network Media:
* 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
** EIA/TIA-568 100Ohm STP (maximum 100m)
* 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
** EIA/TIA-568 100Ohm STP (maximum 100m)
- Fan Quantity: Fanless
- External Power Supply: External Power Adapter (Output: 48VDC / 1.25A)
- PoE Ports (RJ45):
* Standard: 802.3 af compliant
* PoE Ports: Port1- Port4
* Power Supply: 58W
- Mac Address Table: 2K
- Switching Capacity: 1Gbps
- Dimensions (W×D×H): 99.8×98×25 mm
- Transmission Distance: Store-And-Forward
- Max Power Consumption:
* 1.678W (max. no PD connected)
* 64.82W (max. with 58w PD connected)
- Max Heat Dissipation:
* 5.73BTU/h (no PD connected)
* 221.17BTU/h (with 58W PD connected)

SOFTWARE FEATURES
- Transmission Method: Store-And-Forward
- Advanced Functions:
* Compatible With IEEE 802.3af Compliant PDs
* Priority Function
* Mac Address Auto-Learning And Auto-Aging
* IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode

OTHERS
- Certification: FCC, CE, RoHS
- Package Contents:
* TL-SF1005P, Power Adapter, User Guide
- Environment:
* Operating Temperature: 0C - 40C (32F - 104F)
* Storage Temperature: -40C - 70C (-40F - 158F)
* Operating Humidity: 10% - 90%RH non-condensing
* Storage Humidity: 5% - 90%RH non-condensing
