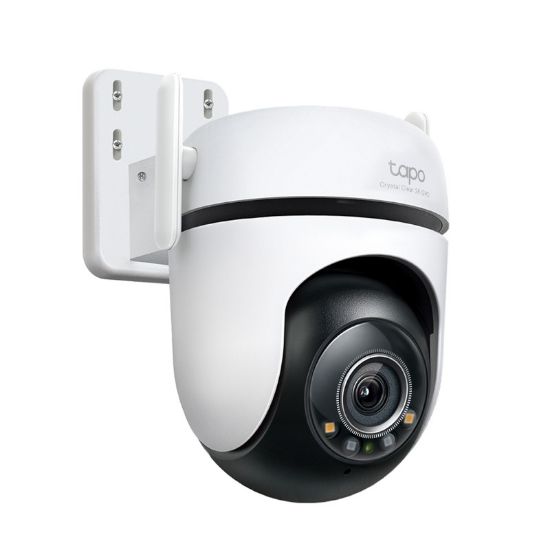

TP-Link Tapo C520WS Outdoor Pan/Tilt Security Wi-Fi

- Adopting a 2560 × 1440 resolution, Tapo C520WS provides 1.7 × more pixels and delivers sharper images than 1080p.

Starlight Color Night Vision
- Adopting an F1.6 large-aperture lens and starlight sensor, Tapo C520WS captures more light and has higher photosensitivity, thus rendering brighter colors under lower light conditions than full-color night vision cameras with an F2.2 lens and ordinary sensor.

360° Visual Coverage
- Provides 360° horizontal & 130° vertical viewing range, enabling you to focus on more vital areas and eliminate blind spots.

Free Person/Pet/Vehicle Detection
- Smart AI identifies people, pets, and vehicles, notifying users as needed.

Customizable Sound and Light Alarm
- Record your own audio as an alarm to extend your usages. The ultra-bright and adjustable light is also supported to frighten unwanted visitors away.

Secure Local & Cloud Storage
- Save recorded videos to a microSD card† or by using Tapo Care** cloud services.

IP66 Weatherproof
- Offers excellent waterproof and dustproof performance for outdoor scenarios.

Wired/Wireless Networking
- Connect your camera to the network through WiFi or Ethernet for more flexible installation.


CAMERA
- Image Sensor: 1/3” Progressive Scan CMOS Starlight Sensor
- Lens
• Focal Length: 3.2 mm
• Aperture: F1.6
• Field of View: 112° (Diagonal), 95°(Horizontal), 53°(Vertical)
- Motion Range:
• Pan Mechanical Range: 340° (360° Pan Coverage)
• Tilt Mechanical Range: 60° (130° Tilt Coverage)
- Night Vision:
• 850 nm IR LED (98 ft / 29.9 m)
• Full-Color Night Vision
- Lighting: 2× Built-in Spotlights
- Interface & Button :
• 1× Ethernet Port
• 1× RESET Button
• 1× MicroSD Card Slot (Up to 512GB)

VIDEO & AUDIO
- Maximum Resolution: 2K QHD 4MP (2560 × 1440 px)
- Frame Rate: 15/20/25/30 fps (Default 15 fps)
- Video Compression: H.264
- Live View: Yes
- Image Enhancement: 3D DNR

BLC
- Audio Input & Output: Built-in Microphone and Speaker
- Audio Communication: Two-Way Audio with Noise Cancellation
- Siren Volume: 93 dB (Level measured at 4-inch/10-cm distance)

STORAGE
- Local Storage: MicroSD Card Slot on Camera (Up to 512 GB)
- Cloud Storage: Tapo Care Cloud Storage Services (Subscription required)

DETECTION and NOTIFICATIONS
AI Detection:
• Motion Detection
• Person Detection
• Pet Detection
• Vehicle Detection
• Line-Crossing Detection
• Tamper Detection
Activity Zones: Yes
Output Notification : System Notification
System Notification with Snapshot (Tapo Care Services)

NETWORK
- Network Connectivity: Connect via Wi-Fi or Ethernet
- Wireless Connectivity: IEEE 802.11b/g/n, 2.4 GHz Wi-Fi
- Ethernet Port: 1× 10/100 Mbps RJ45 Port on Camera
- RTSP: Yes
- ONVIF: Yes

SECURITY
- On-Device Machine Learning
- 128-bit AES Encryption with SSL/TLS
- WPA/WPA2-PSK

POWER
- Power Source: 9V DC Power Adapter
- Input Voltage: 100-240 V, 50/60 Hz
- Output Voltage: 9 V, 0.85 A (DC Power)

GENERAL
- Smart Integration: Google Assistant, Amazon Alexa
- Weather Resistance: IP66
- System Requirements : Tapo App: iOS 9.0 or higher, Andriod 4.4 or higher
- Mounting Options:
• Ceiling-Mounted
• Wall-Mounted
• Pole-Mounted (Pole-Mounting loops required but not included)
- Operating Temperature: -30?~60?
- Storage Temperature: -40?~60?
- Operating Humidity: 10%~90% RH, Non-condensing
- Storage Humidity: 0~90% RH, Non-condensing
- Dimensions: 4.9 × 4.8 × 3.5 in (123.8 × 123 × 90 mm)

Package Contents:
- Tapo C520WS Camera ×1
- Power Adapter ×1
- Mounting Anchors ×4
- Mounting Screws ×4
- Bracket Screws ×2
- Mounting Template ×1
- Mounting Bracket ×1
- Waterproof Seal ×1
- Waterproof Cable Attachments ×1
- Quick Start Guide

Certifications:
- CE, FCC, RoHS, RCM
