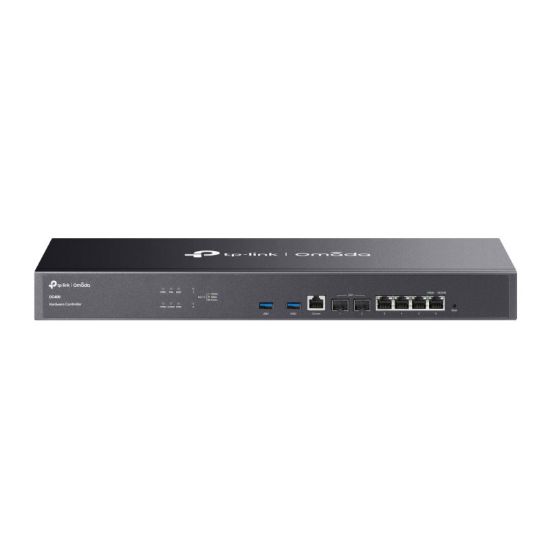

TP-Link OC400 Omada Cloud Hardware Controller

- Centralized Management: for up to 1,000 Omada access points, 200 Omada switches, and 100 Omada routers.*
- 2× 10GE SFP+ Slots, 4× GE RJ45 Ports, and 2× USB 3.0 Ports.
- Redundant power supplies offer a reliable networking architecture.
- Free cloud access with the Omada app or Web UI from anywhere, anytime.
- On-premises manages to locally monitor and manage devices.
- The easy-to-use dashboard and real-time network topology make network monitoring easy.
- Batch and multi-site management benefit network maintenance.

Specifications
HARDWARE FEATURES
- Processor: Quad-Core CPU
- Memory: 4 MB Nor Flash; 32 GB eMMC; 8 GB DDR4
- Interface
• 2× 10G SFP+ Ports
• 4× GE RJ45 Ports
• 2× USB 3.0 Ports
• 1× GE Console Port
- Fan Quantity: 1
- Button: 1× Reset
- Power Supply: 100-240 V ~ 50/60 Hz AC
- Dimensions: 17.3 × 7.1 × 1.7 in (440×180×44 mm)

MANAGEMENT
- Omada App: Yes
- Centralized Management
• Up to 1,000 Omada access points, 200 Omada switches, and 100 Omada routers*
• Up to 30,000 clients
*Refer to www.tp-link.com/en/business-networking/all-omada/ to find all the models supported by OC400
- Cloud Access: Yes
- Multi-site Management: Yes
- Management Features
• Multi-tenant Management (Role/Site/Device Privileges)
• Migration (Site Migration/Controller Migration)
• Account Management
• Backup & Restore
• Auto Backup
• Customized UI Interface
• Automatic Device Discovery
• Batch Configuration
• Online upgrade
• Reboot Schedule
• PoE Schedule
• WLAN Schedule
• Batch Firmware Upgrading
• DDNS
• SNMP
• SSH
- Redundant Power Supply: 2× Internal Fixed Power Supplies

MONITORING
- Monitoring
• Custom Dashboard
• Statistics (Performance/Switch Stats)
• Network topology
• Network Map
• Devices List
• Clients List
• Insights
• Logs

OTHERS
- Certification: CE, FCC, RoHS
- Package Contents
• Omada Hardware Controller OC400
• Quick Installation Guide
• Ethernet Cable
• Power Cord
• Rackmount Kit
- System Requirements: Microsoft Windows 10, 8, 7,Vista XP or MAC OS, NetWare, UNIX or Linux
- Environment
• Operating Temperature: 0–40 ? (32–104 ?)
• Storage Temperature: -40–70 ? (-40–158 ?)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
