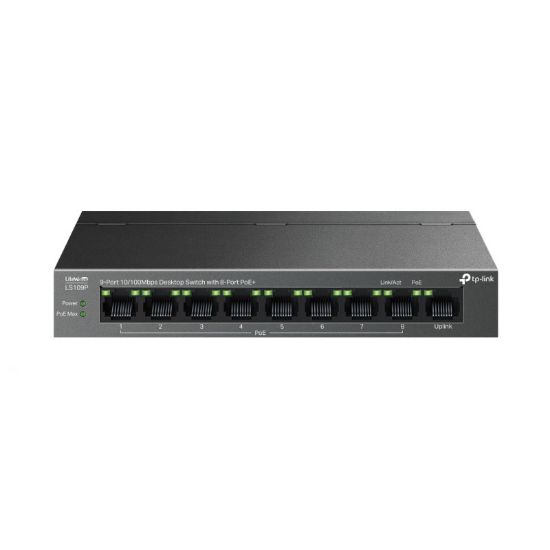

TP-Link LS109P

63 W PoE Budget:
- Eight 10/100 Mbps 802.3af/at-compliant PoE ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable. Up to 30 W PoE output is supported by each PoE port.*

Up to 250 m PoE Transmission:
- With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas.**

PoE Auto Recovery:
- Automatically reboots your dropped or unresponsive PoE-powered devices.

Traffic Separation for Higher Security:
- Isolation Mode allows one-click client traffic separation to avoid snooping and tampering, and isolate broadcast storms.

Plug and Play:
- Simply plug and play for instant connectivity with no configuration required.

Silent Operation:
- Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.

Reliable Hardware Design:
- Durable metal casing and desktop/wall-mounting design are well-suited for different environments.

Specifications
HARDWARE FEATURES
- Interface
• 9× 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE+ Ports)
• AUTO Negotiation
• AUTO MDI/MDIX
- Network Media
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100? STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100? STP (maximum 100m)
Fan Quantity: Fanless
- Installation
• Desktop
• Wall Mounting
- Power Supply: External Power Adapter (Output: 53.5VDC / 1.31A)
- PoE Ports (RJ45)
• Standard: 802.3 af/at compliant
• PoE Ports: Ports 1–8, up to 30 W PoE output per port
• Power Supply: 63 W
- LED Indicator
• Power
• Link/Act
• PoE Status
• PoE MAX
- Dimensions ( W x D x H ): 6.7×3.9×1.1 in (171×98×27 mm)
- Max Power Consumption
• 3.67 W (220 V/50 Hz no PD connected)
• 73.24 W (220 V/50 Hz with 63 W PD connected)
- Max Heat Dissipation
• 12.48 BTU/h (220 V/50 Hz no PD connected)
• 249 BTU/h (220 V/50 Hz with 63 W PD connected)

PERFORMANCE
- Switching Capacity: 1.8 Gbps
- Packet Forwarding Rate: 1.3392 Mpps
- MAC Address Table: 2K
- Jumbo Frame: 1.5 KB

SOFTWARE FEATURES
- Advanced Features
• Extend Mode Button (Ports 1–4/1–8, Up to 250 m PoE power supply and data transmission)
• Isolation Mode Button (Ports 1–8)
• PoE Auto Recovery Button (Ports 1–8)
• Compatible With IEEE 802.3af/at Compliant PDs
• Mac Address Auto-Learning and Auto-Aging
• IEEE 802.3x Flow Control
• Green Technology
- Transfer Method: Store and Forward

OTHERS
- Certification: CE, FCC, RoHS
- Package Contents
• LS109P
• Power Adapter
• Installation Guide
• Rubber Feet
- Environment
• Operating Temperature: 0–40 ? (32–104 ?)
• Storage Temperature: -40–70 ? (-40–158 ?)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
