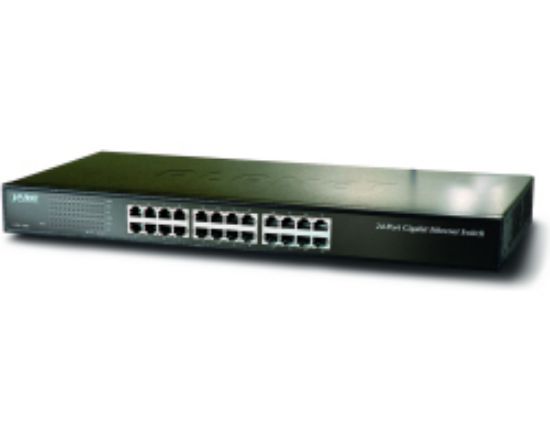

Opis/specifikacija: FEATURES - Complies with IEEE802.3, 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T - 24-Port 10/100/1000Mbps Gigabit Ethernet ports - Features Store-and-Forward mode with wire-speed filtering and forwarding rates - Hardware based 10/100Mbps, half/full duplex and 1000Mbps full duplex mode, flow control and auto-negotiation - IEEE802.3x flow control for full duplex operation and Backpressure for half duplex operation - Integrated address look-up engine, support 8K absolute MAC addresses - Provide 400KB buffer memory - 9K Jumbo packet support - Automatic address learning and address aging - Supports Auto MDI/MDI-X function - Support CSMA/CD protocol - 100~240VAC, 3.0A, 50~60Hz universal Power input - FCC, CE class A compliant SPECIFICATIONS Hardware Specification - Network Ports: 24-Port 10/100/100Mbps RJ-45 with Auto-MDI/MDI-X - Switch Architecture: Store and Forward - Switch Fabric: 48Gbps - Switch Throughput: 35.7Mbps - Address Table 8K Entries: 8 entries - Share Data Buffer: 400KB - Flow Control: Back pressure for half duplex, IEEE 802.3x Pause Frame for full duplex - Dimension (W×H×D): 440×44×120 mm - Weight: 1.75 KG - Power Requirement: 100~240 VAC, 3.0A, 50-60 Hz - Power Consumption: 30 watts, 102BTU - Temperature: Operating: 0-50 degree C, Storage -40-70 degree C - Humidity Operating: 10% to 90%, Storage: 5% to 95% (Non-condensing) Standards Conformance - Regulation Compliance: FCC Part 15 Class A, CE - Standards Compliance: * IEEE 802.3 (Ethernet) * IEEE 802.3u (Fast Ethernet) * IEEE 802.3ab(Gigabit Ethernet) * IEEE 802.3x (Full-duplex flow control) - Temperature: * Operating: 0-50 Degree C * Storage: -40-70 Degree C - Humidity: * Operating: 5-90% * Storage: 5-90% (Non-condensing)
