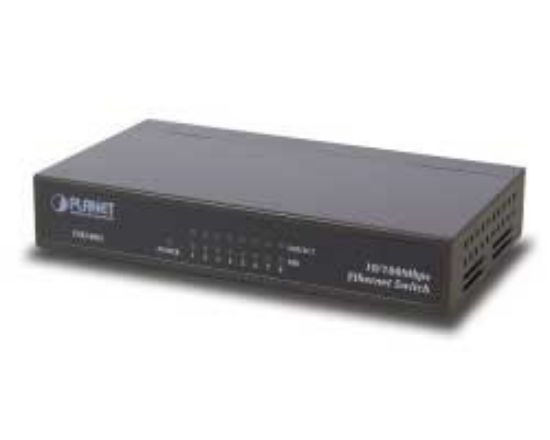

Planet FSD-803 SOHO Switch

Opis/specifikacija:
Key Features
- Complies with IEEE 802.3, 10Base-T, IEEE 802.3u 100Base-TX Ethernet standards
- 8 10/100Mbps Fast Ethernet ports
- Features Store-and-Forward mode with wire-speed filtering and forwarding rates
- Hardware based 10/100Mbps, half / full duplex , flow control and auto-negotiation
- IEEE 802.3x flow control for full duplex operation and Backpressure for half duplex operation
- Integrated address look-up engine, supports 2K absolute MAC addresses
- 448K bits packet buffer memory
- One power on/off button for energy saving
- Automatic address learning and address aging
- Supports Auto MDI/MDI-X function
- Supports CSMA/CD protocol
- External power adapter 12V 0.5A
- FCC, CE class A compliant

Specification
- 10/100Base-TX Ports: 8
- LED Display: One for Power, One for Link / Act per port
- Dimension (W×D×H): 160×80×28 mm
- Weight: 325g
- Power Requirement: DC 12V, 500mA
- Power Consumption / Dissipation: 4.3 Watts / 14.6 BTU
- Switch Processing Scheme: Store-and-Forward
- Address Table: 2K
- Packet buffer memory: 448K bits
- Flow Control: Back pressure for half duplex, IEEE 802.3x Pause Frame for full duplex
- Switch Fabric: 1.6Gbps
- Throughput (packet per second): 1.19Mpps
- Standard :
* IEEE 802.3 10Base-T Ethernet
* IEEE 802.3u 100 Base-TX Fast Ethernet
* IEEE 802.3x Full-duplex Flow Control
- Regulation Compliance: FCC Part 15 Class A CE
- Temperature:
* Operating: 0-50 Degree C
* Storage: -10-70 Degree C
- Humidity:
* Operating: 5-90%
* Storage: 5-90% (Non-Condensing)
