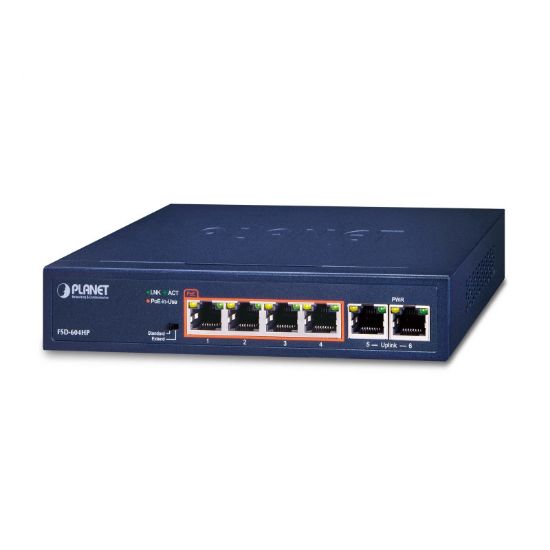

PLANET FSD-604HP

- Centralized Power Distribution for HD IP Surveillance System
* PLANET FSD-604HP Desktop Switch provides four 802.3at PoE+ ports for catering to small-scale IP surveillance networks at a lower total cost
* With dual 10/100BASE-TX uplink ports, the recorded HD video files from the 4 PoE IP cameras powered by the FSD-604HP are saved in the 4-channel NVR system
* Its surveillance software performs comprehensive security monitoring and manages the surveillance system in the local LAN or remote site via Internet
- 4-port PoE, 60-watt PoE budget
- Two 10/100Mbps uplink ports
- Can extend distance of up to 250m in the extend mode
- 30-watt power output at speed of 10Mbps
- Internal AC power, fanless design
- Innovative Port-based VLAN Protection
- Distance Extended for Transmission of Power and Data
- Robust Protection
- Environment-friendly, Fanless Design for Silent Operation
- Easy Cable Connection

Specifications
HARDWARE SPECIFICATIONS
- Network Connector: 6-port RJ45 for 10/100BASE-TX, auto MDI/MDIX
- PoE Inject Port: 4-port with 802.3af/at PoE injector function (Port-1 to Port-4)
- LED Display:
* System: Power (Orange)
* Per PoE port: PoE (Orange, Port 1 to Port 4), LNK/ACT (Green, Port 1 to Port 6)
- DIP Switch:
* 100m distance in standard mode
* 250m distance in extend mode (based on the cable category)
- Switch Architecture: Store and Forward switch architecture
- MAC Address Table: 2K MAC address table with auto learning function
- Switch Fabric: 1.2Gbps
- Switch Throughput: 0.89Mpps @64bytes
- Maximum Packet Size: 1536bytes
- Flow Control: Back pressure for half duplex. IEEE 802.3x pause frame for full duplex
- Power Requirements: AC 100-240V, 2A max.
- Power Consumption: Max. 63 watts, 214 BTU
- Dimensions (W×D×H): 168×93×32 mm
- Weight: 499g
- ESD Protection:
* Contact discharge of +/-4KV DC
* Air discharge of +/-6KV DC
- Surge Immunity: +/-4KV

POWER OVER ETHERNET
- PoE Standard:
* IEEE 802.3af Power over Ethernet/PSE
* IEEE 802.3at Power over Ethernet Plus/PSE
- PoE Power Supply Type: End-span
- Power Pin Assignment: 1/2(+), 3/6(-)
- PoE Power Output:
* Per Port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af)
* Per Port 52V DC, 600mA. max. 30 watts (IEEE 802.3at)
- PoE Power Budget : 0 watts
- Number of PDs, 7 watts: 4
- Number of PDs, 15.4 watts: 4
- Number of PDs, 30 watts: 2

STANDARD CONFORMANCE
- EMI Safety: CE, FCC
- Standard Compliance:
* IEEE 802.3 Ethernet
* IEEE 802.3u Fast Ethernet
* IEEE 802.3x Flow Control
* IEEE 802.3af Power over Ethernet
* IEEE 802.3at Power over Ethernet Plus

ENVIRONMENT
- Operating Environment: 0 to 50 degrees C
- Storage Environment: -10 to 70 degrees C
- Operating Humidity: 5 to 95%, relative humidity, non-condensing
- Storage Humidity: 5 to 95%, relative humidity, non-condensing
