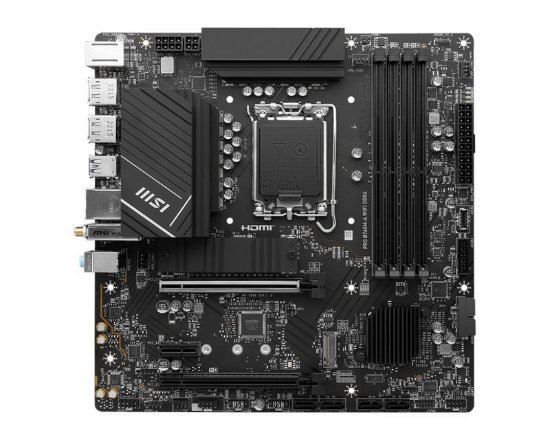

MSI PRO B760M-A WIFI DDR4, S.1700, 4xDDR4/5333MHz, PCIe 4.0, 2.5G-LAN, VGA/HDMI/2xDP, mATX

CPU: Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium
Takt memorije [MHz]: 2133, 2400, 2666, 2933, 3200, 3333, 3400, 3466, 3600, 3733, 4000, 4200, 4266, 4400, 4600, 4800, 5000, 5200
RAID: 0, 1
Mreža: 1x 2.5Gb Ethernet
Memorija: DDR4
Display port: 2
HDMI: 1
Socket: LGA1700
Chipset (N): B760
BUS[MHz]: 1666
Broj utora: 4
Max. memorije [GB]: 128
AGP 4x/8x: n/a
PCI: n/a
PCIe 3.0 x16: 0
PCIe x16: n/a
PCIe x8: n/a
PCIe x4: 1
PCIe x1: 1
PCI-X: n/a
PATA: n/a
SATA II: n/a
SATA3: 4
Audio: 8-kanalni audio
Parallel: n/a
Serial: n/a
PS/2 mouse: n/a
PS/2 keyboard: 1
eSATA: 0
D-sub: 1
DVI: n/a
RJ45: 1
USB 2.0: 4
USB 3.0: 0
S/PDIF Out: n/a
FireWire: 0
4-pin ATX 12V Power: n/a
8-pin ATX 12V Power: Y
20-pin ATX Power: n/a
24-pin ATX Power: Y
Front panel audio: Y
Chasis Intrusion: n/a
CD Audio In: n/a
Chasis Fan Power: 2
CPU Fan Power: 1
Format ploče: mATX
WLAN connector: 2
Podrška za integrirani grafičk: Y
SATA Express: n/a
M.2: 2
U.2: n/a
USB 3.1: 0
USB 3.1: 4
USB 3.2: 4
Bluetooth: Da
PCIe 4.0 x16: 1
PCIe 5.0 x16: 0
