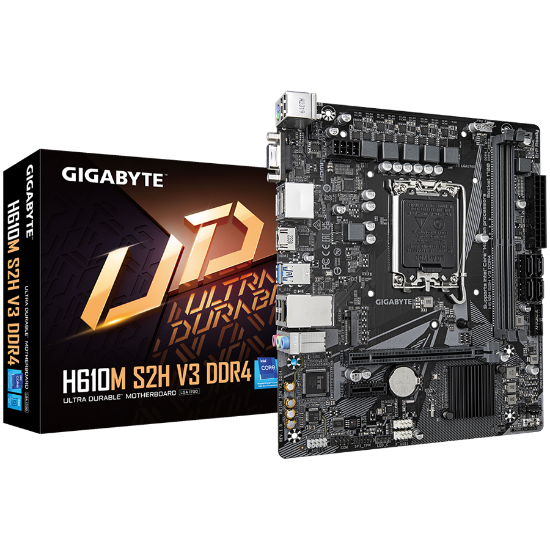

GIGABYTE H610M S2H V3 DDR4, S.1700, 2xDDR4/3200MHz, PCIe 3.0, G-LAN, VGA/2xDP/HDMI, mATX

Chipset: Intel H610
CPU podnožje: Socket 1700
Vrsta memorije: DDR4 SDRAM
PCI Express 4.0 x16: 1
PCI Express 3.0 x1: 1
PS/2: 1
VGA: 1 (15-pin D-sub)
DisplayPort: 2
HDMI: 1 (HDMI (Type A))
USB 3.2 Gen 1: 2 (USB 3.2 (type A))
USB 2.0: 4 (USB 2.0 (type A))
LAN: 1 (RJ-45)
Power Connectors Type: 24+8 pin
CPU podrška: Intel 12th Gen Processors, Intel 13th Gen Processors, Intel 14th Gen Processors
CPU Max. količina: 1
Format memorije: DIMM 288-pin
Brzina memorije: 2133MHz(PC4-17000), 2400MHz(PC4-19200), 2666MHz(PC4-21300), 2933MHz(PC4-23400), 3000MHz(PC4-24000), 3200MHz(PC4-25600)
Max. kapacitet memorije: 64 GB
Količina utora: 2
Provjera pogrešaka: non-ECC
Značajke memorije: Two DDR Channels, Dual Rank, Single Rank, XMP
Integrirani video kontroler: Da
Integrirani audio: Da
Audio standard: HD audio
Integrirani LAN: Da
Podržana brzina: Gigabit Ethernet/Fast Ethernet/Ethernet
Audio izlaz: 3 (3.5-mm minijack)
BIOS vrsta: AMI
BIOS: Gigabyte Q-Flash, WfM 2.0 Support, Gigabyte EasyTune, PnP 1.0a Support, UEFI, SMBIOS 2.7 Support, 128 Mb Flash ROM, DMI 2.7 Support, ACPI 5.0 Support
Nadzor: CPU Temperature, CPU Voltage, System Temperature, System Voltage
Softver: Norton Internet Security (OEM version)
Podržani operativni sustavi: Microsoft Windows 10 64-bit, Microsoft Windows 11 64-bit
Format: Micro ATX
Visina (mm): 193 mm
Širina (mm): 223 mm
Jamstvo u Hrvatskoj: Da
Jamstveni rok (mjeseci): 36 mjeseci(a)
Validacija jamstva: Serijski broj
EAN kod: 4719331859732
Integriran: Storage Controller:, PCI Express 3.0 x4 (1 x M.2 (Key M)), Storage Controller:, SATA III-600 (4),
Vrsta: Integriran
Audio izlaz: 7.1 Channel Surround
