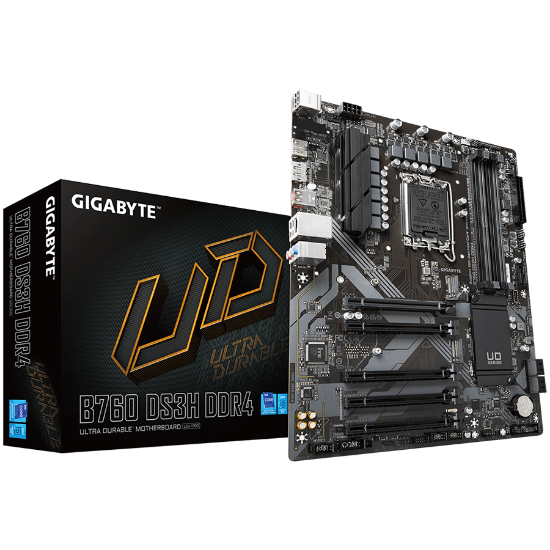

GIGABYTE B760 DS3H

CPU
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors
L3 cache varies with CPU
Chipset
Intel B760 Express Chipset
Memory
Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics
Integrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.3.
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
Expansion Slots
CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1
(PCIEX1_1, PCIEX1_3~PCIEX1_5)
Storage Interface
CPU:
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio
Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
LAN
Realtek GbE LAN chip (1 Gbps/100 Mbps)
USB
Chipset:
1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support
1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
2 x USB 3.2 Gen 1 ports available through the internal USB header
4 x USB 2.0/1.1 ports on the back panel
Chipset+2 USB 2.0 Hubs:
4 x USB 2.0/1.1 ports available through the internal USB headers
