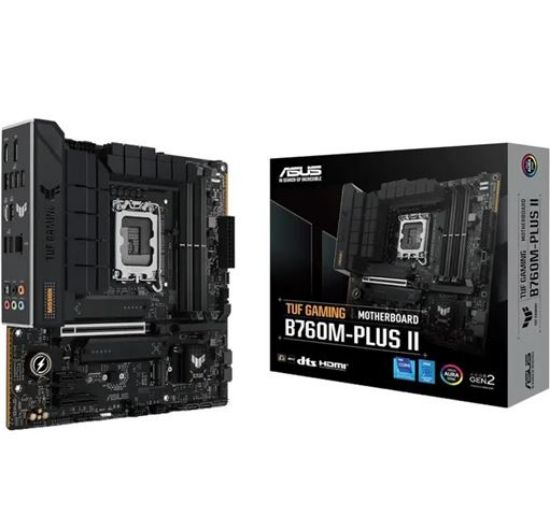

ASUS TUF GAMING B760M-PLUS II, S.1700, 4xDDR5/7800+MHz, PCIe 5.0, 2.5G-LAN, HDMI/DP, mATX

CPU: Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium
Takt memorije [MHz]: 4800, 5000, 5200
RAID: 0, 1, 5
Mreža: 1x 2.5Gb Ethernet
Memorija: DDR5
Display port: 1
HDMI: 1
Socket: LGA1700
Chipset (N): B760
BUS[MHz]: 1000
Broj utora: 4
Max. memorije [GB]: 192
AGP 4x/8x: n/a
PCI: n/a
PCIe 3.0 x16: 0
PCIe x16: n/a
PCIe x8: n/a
PCIe x4: 1
PCIe x1: 1
PCI-X: n/a
PATA: n/a
SATA II: n/a
SATA3: 4
Audio: 8-kanalni audio
Parallel: n/a
Serial: n/a
PS/2 mouse: n/a
PS/2 keyboard: n/a
D-sub: n/a
DVI: n/a
RJ45: 1
USB 2.0: 4
USB 3.0: 0
S/PDIF Out: n/a
4-pin ATX 12V Power: n/a
8-pin ATX 12V Power: Y
20-pin ATX Power: n/a
24-pin ATX Power: Y
Front panel audio: Y
Chasis Intrusion: n/a
CD Audio In: n/a
Chasis Fan Power: 3
CPU Fan Power: 2
Format ploče: mATX
WLAN connector: n/a
Podrška za integrirani grafičk: Y
SATA Express: n/a
M.2: 3
U.2: n/a
USB 3.1: 0
USB 3.1: 2
USB 3.2: 4
Bluetooth: Da
PCIe 4.0 x16: 0
PCIe 5.0 x16: 1
