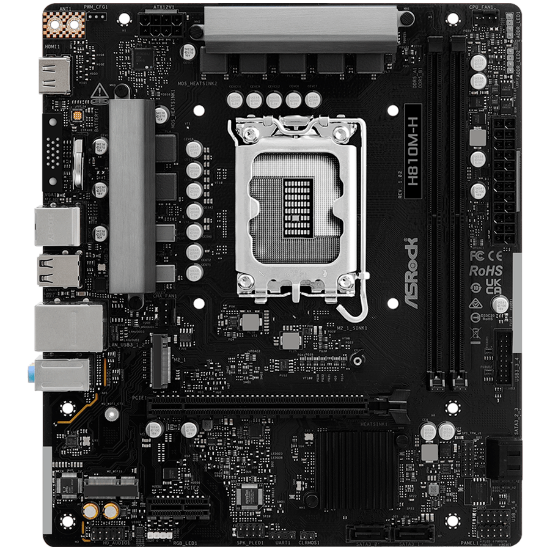

ASRock H810M-H

Chipset: Intel H810
CPU podrška: Intel Core Ultra Processors (Series 2)
CPU podnožje: Socket 1851
Architecture Features: Intel Turbo Boost Technology 3.0, Intel Hybrid Technology, Intel Thermal Velocity Boost, Intel Adaptive Boost Technology
Vrsta memorije: DDR5 SDRAM
Format memorije: DIMM 288-pin
Max. kapacitet memorije: 128 GB
Količina utora: 2
Provjera pogrešaka: non-ECC
Značajke memorije: Two DDR Channels, Unbuffered, XMP 3.0
Integriran: Storage Controller:, SATA III-600 (4), Storage Controller:, PCIe NVMe 4.0 x4 (1 x M.2 22x80 (Key M)),
Support: Wi-Fi Controller:, 1 x M.2 (Key E),
Integrirani video kontroler: Da
Model: Intel Xe LPG Graphics
Integrirani audio: Da
Vrsta: Integriran
Chipset: Realtek ALC897
Audio izlaz: 7.1 Channel Surround
Audio standard: HD audio
Integrirani LAN: Da
LAN Chipset: Realtek RTL8111H
Podržana brzina: 1 Gbps
PCI Express 4.0 x1: 1
PCI Express 4.0 x16: 1
Antenna: 2
PS/2: 1 (6-pin)
HDMI: 1 (HDMI (Type A))
USB 3.2 Gen 1: 2 (USB Type-A)
USB 2.0: 4 (USB Type-A)
LAN: 1 (RJ-45)
Audio izlaz: 3 (3.5-mm minijack)
BIOS vrsta: AMI
BIOS: ASRock Instant Flash, 256Mb AMI UEFI Legal BIOS with GUI support
Mainboard Cooling System: CPU Active Heatsink
Power Connectors Type: 24 pin
8 pin
2x4 pin
Mainboard Features: RGB Polychrome, ASRock Intel 4-Layer Memory POOL Technology
Podržani operativni sustavi: Microsoft Windows 11 64-bit
Kabeli: 2 x SATA Data Cables
Dodaci: I/O Shield, Screw
Standardi: FCC, CE, ErP/EuP Ready
Format: Micro ATX
Širina (mm): 220 mm
Dubina (mm): 193 mm
Jamstvo u Hrvatskoj: Da
Jamstveni rok (mjeseci): 36 mjeseci(a)
Validacija jamstva: Serijski broj
Vrsta pakiranja: Maloprodajno
EAN kod: 4711581490833
