- Wireless N speed up to 300Mbps makes it ideal for bandwidth consuming or interruption sensitive applications like video streaming, online gaming and VoIP
- Easily setup a WPA encrypted secure connection at a push of the WPS button
- WDS wireless bridge provides seamless bridging to expand your wireless network
- QoS function assures the quality of VoIP and multimedia streaming
- Wi-Fi On/Off Button allows users to simply turn their wireless radio on or off
- Features parental control function managing the internet access of children or employees computer
- Supports virtual server, special application and DMZ host ideal for creating a website within your LAN
- Offers Auto-mail function for system log, convenient for managing the router
- Backward compatible with 802.11b/g products
- Easy Setup Assistant provides quick & hassle free installation
- Sleek exterior, can be mounted on a wall or placed horizontally on a table or desk
HARDWARE FEATURES
- Interface: 4× 10/100Mbps LAN Ports
- 1× 10/100Mbps WAN Port
- Button:
* WPS/Reset Button
* Wi-Fi On/Off Button
* Power On/Off Button
- External Power Supply: 9VDC / 0.6A
- Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
- Antenna: 2× 5dBi Fixed Omni Directional Antenna
- Dimensions (W×D×H): 192×130×33 mm
WIRELESS FEATURES
- Frequency: 2.4-2.4835GHz
- Signal Rate:
* 11n: Up to 300Mbps (dynamic)
* 11g: Up to 54Mbps (dynamic)
* 11b: Up to 11Mbps (dynamic)
- Reception Sensitivity:
* 270M: -68dBm@10% PER
* 130M: -68dBm@10% PER
* 108M: -68dBm@10% PER
* 54M: -68dBm@10% PER
* 11M: -85dBm@8% PER
* 6M: -88dBm@10% PER
* 1M: -90dBm@8% PER
- Transmit Power:
* CE: <20dBm(2.4GHz)
* FCC: <30dBm
- Wireless Functions: Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
- Wireless Security: 64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK
SOFTWARE FEATURES
- WAN Type: Dynamic IP/Static IP/PPPoE/PPTP/L2TP/BigPond
- DHCP: Server, Client, DHCP Client List, Address Reservation
- Quality of Service: WMM, Bandwidth Control
- Port Forwarding: Virtual Server,Port Triggering, UPnP, DMZ
- Dynamic DNS: DynDns, Comexe, NO-IP
- VPN Pass-Through : PPTP, L2TP, IPSec (ESP Head)
- Access Control: Parental Control, Local Management Control, Host List, Access Schedule, Rule Management
- Firewall Security:
* DoS, SPI Firewall
* IP Address Filter/MAC Address Filter/Domain Filter
* IP and MAC Address Binding
- Management:
* Access Control
* Local Management
* Remote Management
OTHERS
- Package Contents:

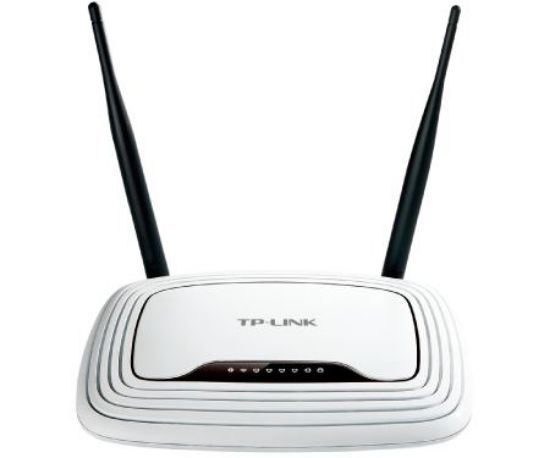

* Wireless N Rotuer TL-WR841N
* Power supply unit
* Resource CD
* Quick Installation Guide
- Environment:
* Operating Temperature: 0C - 40C (32F - 104F)
* Storage Temperature: -40C - 70C (-4F - 158F)
* Operating Humidity: 10% - 90% non-condensing
* Storage Humidity: 5% - 90% non-condensing
