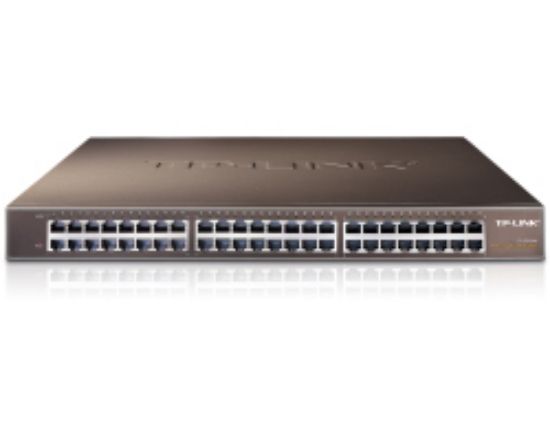

48-port Gigabit Switch, 48×10/100/1000M RJ45 ports, 1U 19" rack-mountable steel case. Features - 100% Data filtering rate eliminates all error packets - Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode - Non-blocking switching architecture forwards and filters packets at full wire-speed for maximum throughput - 96Gbps Switching Capacity - Auto MDI/MDIX eliminates the need for crossover cables - Supports MAC address auto-learning and auto-aging - Support the port N-Way Auto-Negotiation, Store and Forward. - Compact size design for desktops, Rackmountable - Plug and Play design simplifies installation Specifications HARDWARE SPECIFICATIONS - Interface: 48× 10/100/1000Mbps RJ45 ports (AUTO Negotiation/AUTO MDI/MDIX) - Mac Address Table: 8K - External Power Supply: 100-240VAC, 50/60Hz - Dimensions (W×D×H): 440×360×44 mm SOFTWARE SPECIFICATIONOS - Transfer Method: Store and Forward - Advanced Functions: * 802.3X Flow Control, Back Pressure * Auto-Uplink Every port OTHER FEATURES - Operating Temperature: 0C - 40C (32F - 104F) - Storage Temperature: -40C - 70C (-40F - 158F) - Operating Humidity: 10-90% non-condensing - Storage Humidity: 5-90% non-condensing
