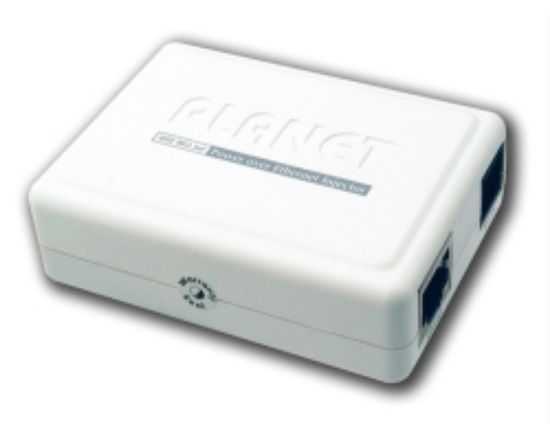

Planet POE-152

Key Features
- Complies with IEEE 802.3af Power over Ethernet, IEEE 802.3/802.3u/802.3ab 10/100/1000Base-T
- Provides DC 48V power over RJ-45 Ethernet cable to device with Ethernet port
- LED indicators power input indication
- Distance up to 100 meters
- Auto-detect of POE IEEE 802.3af equipment and devices from being damaged by incorrect installation
- Works with EIA568, category 5, 5e or 6 ,2/4-pair cables for 10Base-T or 100Base-TX and 1000Base-T
- EMI standards complies with FCC, CE class B

Specification
- Ethernet Connector: 2× RJ-45 (1 for data + DC out, 1 for Data in)
- Ethernet Data rate: 10/100/1000Mbps (vary on Ethernet device attached)
- Input voltage: DC 48V, 0.4A
- Number of device can be powered: 1
- Ethernet cable: TIA/EIA-568, Category 5/5e/6 cable
- LED indicator: 1× power, 1× POE ready / in-use
- Operating environment: 0 - 50 Degree C, 5 - 90% RH
- Storage environment: -20 - 70 Degree C, 5 - 90% RH
- Dimension (W×D×H): 73×55×24 mm
- Weight: 50g
- Emission: FCC Class B, CE mark
- Standard Compliance:
* IEEE 802.3 Ethernet
* IEEE 802.3u Fast Ethernet
* IEEE 802.3ab Gigabit Ethernet
* IEEE 802.3af Power over Ethernet
