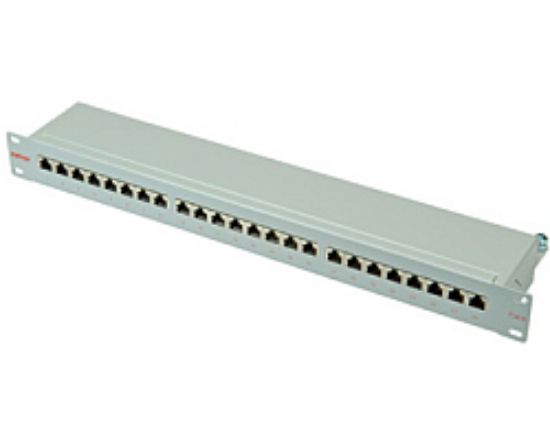

PATCH PANEL 24-port STP Cat.6, 19" Roline

Jamstvo: 24 mjeseca
SKU: 01701300008
718,29 kn

Opis/specifikacija:
Description
- The ROLINE Cat.6/Class E 19" patch panel fulfils the Cat.6/Class E Permanent Link Standard and is ideal for Gigabit Ethernet networks
- Cable assembly takes place using LSA-plus piercing terminals with colour coding on the top in accordance with EIA/TIA 568
- Sheet steel housing and cover
- 24 ports
- Colour: Light grey

Technical Data
- Assembly cable connection: Krone LSAplus
- Quantity of ports: 24
- Assignment: EIA/TIA 568A
- Colour: light grey
- Separate strain relief: Yes
- Material (casing): Metal
- Modular assembly: No
- Shield type: Screened
- Connection direction: Straight
- Transfer quality: Cat.6/Class E

For a structured cabling system we recommend to use the following components:
ROLINE Cat.6 S/FTP Cable, Solid Wire, AWG23: 21.15.0890 (100 m), 21.15.0891 (300 m)
ROLINE Cat.6 Flush Mount Wall Jack, shielded: 25.16.8492 (white), 25.16.8493 (ivory)
ROLINE Cat.6 Surface Mount Wall Jack, shielded: 25.16.8392 (white), 25.16.8393 (ivory)
ROLINE Cat.6 19" Patch Panel, 24 Ports, shielded: 26.11.0351 (light grey), 26.11.0361 (black)
ROLINE Cat.6 S/FTP Patch Cord, grey, 5 m: 21.15.0835
