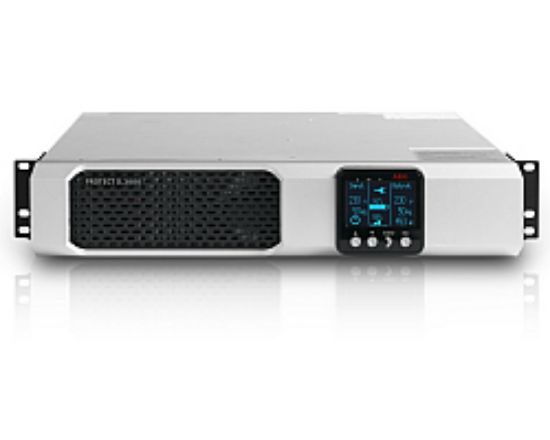

AEG UPS Protect D Rack 3000VA/2700W

VFI On-line double conversion, Hot-swappable batteries, RS232/USB interface. Features - VFI topology (online double-conversion): protects against all mains power disturbances - approx. 30% higher available power by 0.9 lagging power factor - Increase of efficiency through ECO and ECO+ mode - Improved battery charging technology for optimal battery lifetime - Hot-swappable batteries, easy exchange via flip-over cover - Additional BatteryPacks for individual scaling of autonomy times - Expansion slot for communication cards, parallel operation via RS232/USB and SNMP - Maximized rack space as the UPS is only 2U including integrated batteries - Controllable UPS outlets with innovative lock mechanism, prevents accidental disconnection of connected cables - Graphical display shows UPS parameters, easy configuration of settings via control panel - Data logger synchronized to real time clock - Programmable potential-free contact & EPO switch - Frequency converter mode Technical Specifications - Type rating: 3000VA/2700W UPS INPUT - Nominal input voltage: 220Vac/230Vac/240Vac - Voltage range w/o battery operation (load-dependent): 180-276 Vac - Frequency (automatic detection): 50/60 Hz +/- 10% - Current consumption at full load (max.): 14A UPS OUTPUT - Rated output voltage (adjustable): 208Vac/220Vac/230 Vac (default)/240 Vac +/- 2 % - Frequency in battery / converter mode: 50/60 Hz +/- 0.25 Hz - Nominal output current (at 230 Vac): 13A - Changeover time at mains failure: 0 ms (without interruption) - Voltage curve shape: Sinusoidal, distortion THD < 3 % - Overload ability (double-conversion mode): < 130% for 5 min. / 130% - 150% for 15s - Overload ability (battery mode): < 130% for 12s / 130% - 150% for 2s - Crest factor: 3:1 - Short circuit ability: short-circuit-proof ( 4 x In for 100ms) BATTERY - Type: sealed, maintenance-free, lead acid, integrated, hot-swappable - Nominal DC voltage (intermediate circuit): 72 Vdc - Battery management: temperature compensated with deep discharge protection, autom. battery test & battery pack detection - Charging time (to 90 % of rated capacity): 3h COMMUNICATION - Interfaces: RS232, USB, communication slot (can be used parallel to RS232/USB), terminals for EPO N.C. (default) or N.O. and a programmable potential-free contact - Shutdown software (on CD): five network licences included (Windows, Linux, Mac, Unix, Sun etc.) - Alarms (acoustic/optical): 3 LEDs arranged for quick operational status check, detailled indication via LCD display, (alarms at mains failure, overload, battery discharged, replace battery, fan fault, RTC event logger) GENERAL DATA - Efficiency at full load (ECO+ mode): >= 98% - Efficiency at full load (double-conversion mode): > 90% - Operating temperature range: -15 to 40C - Inherent noise (1m distance/full load): < 52dBa - Humidity: < 95% (without condensation) - max. site altitude: up to 3000 m at full load - Load outputs (controllable): 8× IEC320 C13 (2+2) + 1× IEC 320 C19 - Casing Material: Metal case with Aluminium front - Weight approx.: 29.5 kg
